Lake Almanor Country Club

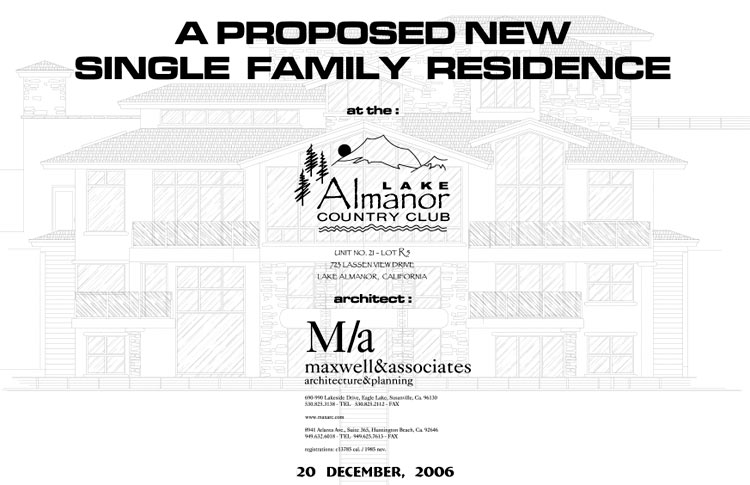

... a proposed new single family dwelling

Click on image to see a closer view.

Unit No. 21-Lot R5
723 Lassen View Drive
Lake Almanor, California

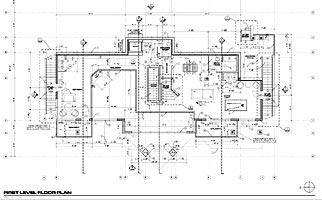

First Level Floor Plan
Click on this image to see the complete PDF file.

Second Level Floor Plan
Click on this image to see the complete PDF file.

Second Level Floor Finish Plan
Click on this image to see the complete PDF file.

Third Level Floor Plan
Click on this image to see the complete PDF file.

Basement Level Floor Plan
Click on this image to see the complete PDF file.

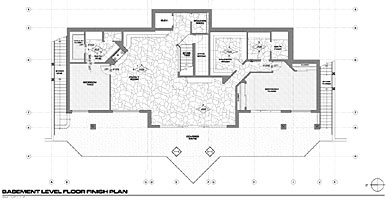

Basement Level Floor Finish Plan
Click on this image to see the complete PDF file.

Doors and Windows
Click on this image to see the complete PDF file.

Exterior Elevation Rear (West)
Click on this image to see a closer view.
Click here to download the complete PDF file.

Exterior Elevation - Side (North)
Click on this image to see a closer view.
Click here to download the complete PDF file.
GENERAL NOTES
(Interior Elevations)

A. All appliances shown on these documents are for illustrative purposes only. The color, style, and manufacturer are to be selected by the owner and provided and installed by the contractor. It is the contractors responsibility to verify the location of all plumbing and electric outlets to ensure the proper functioning of appliances.
B. All countertops above casework are to be 1" thick stone. Pattern and color to be selected by owner and provided and installed by owner.
C. All stone backsplashes and countertops re to be 4" tall (unless noted otherwise.
D. All baseboards (not shown for clarity) are to be 6"x1" thick (nominal) stained hardwood. Finish to be selected by owner.
E. All plumbing fixture styles, colors, and manufacturers are to be selected by owner and provided and installed by contractor.

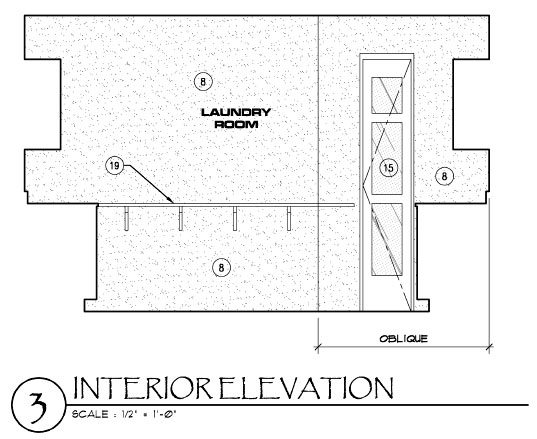

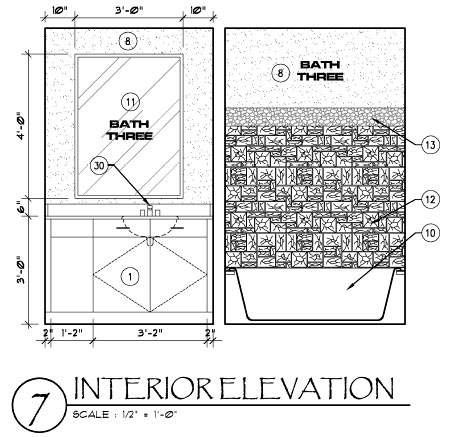

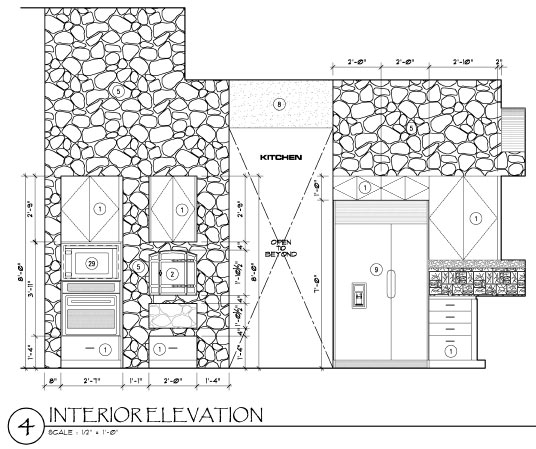

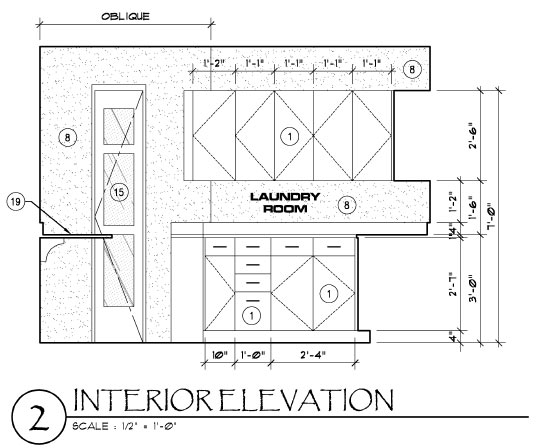

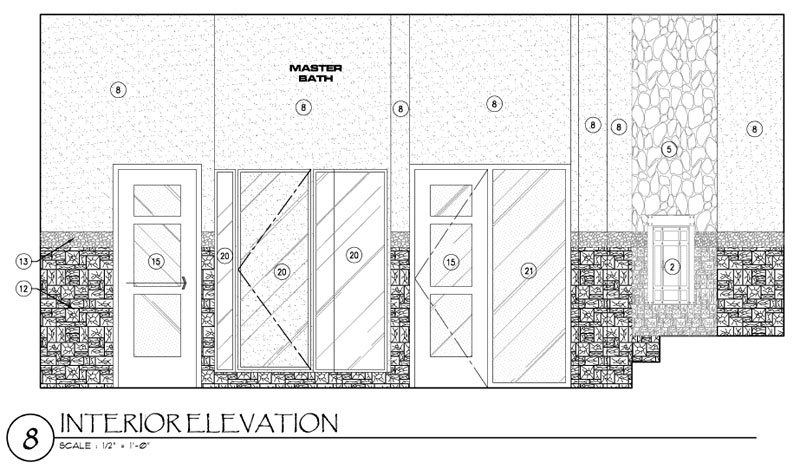

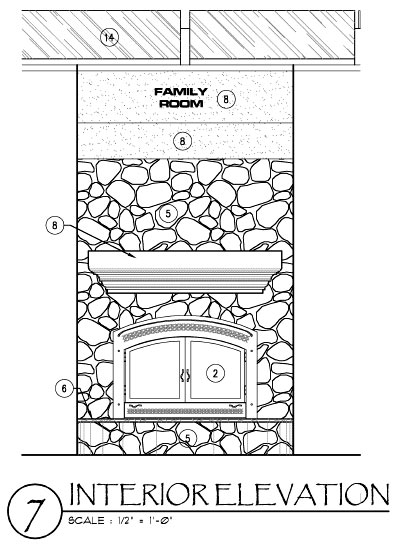

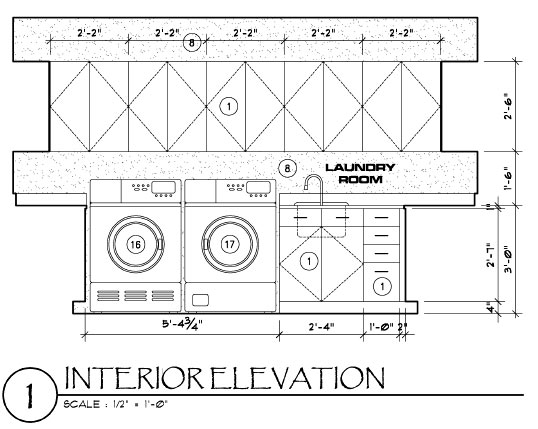

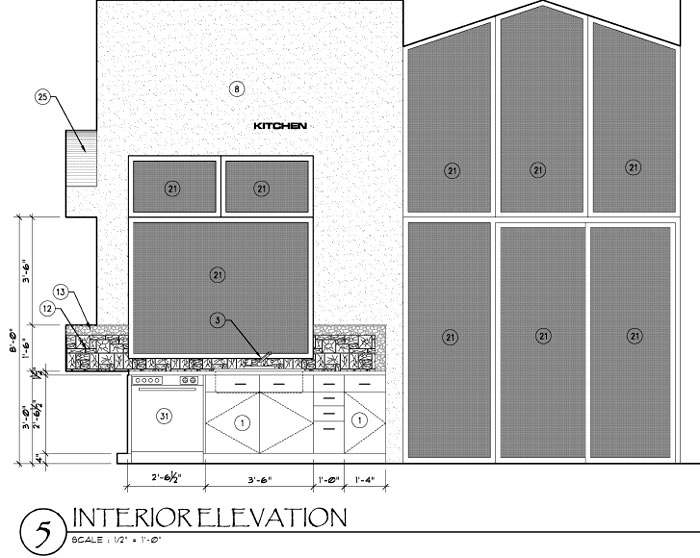

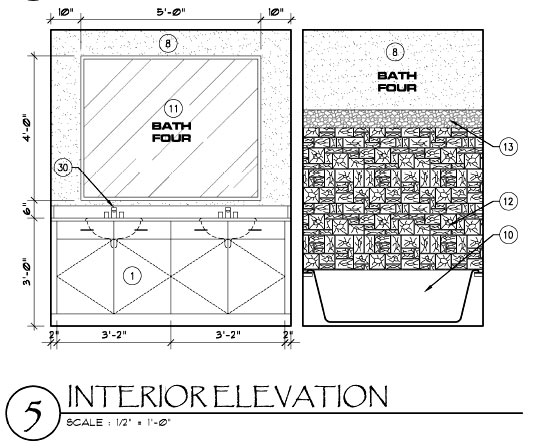

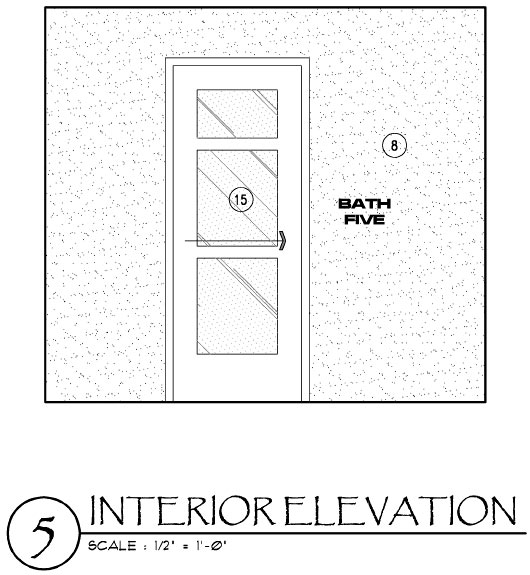

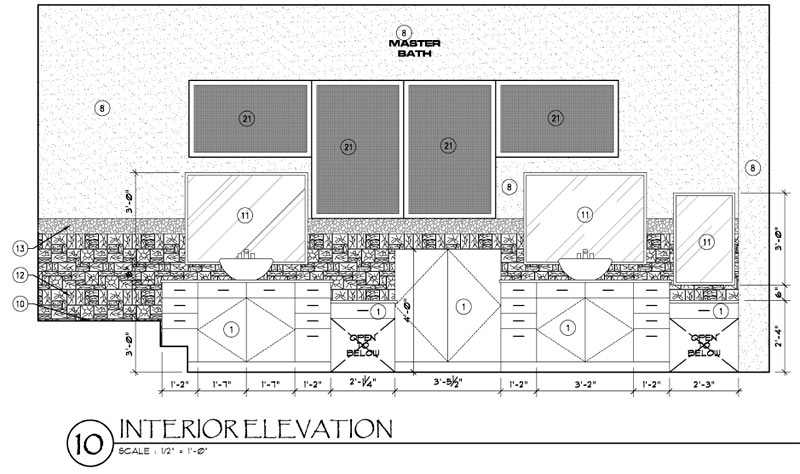

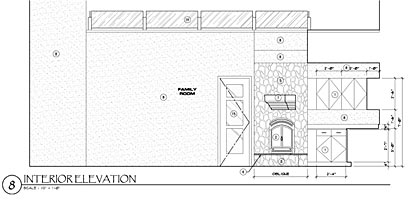

INTERIOR ELEVATION FIGURES
Click here to download and view PDF file for Interior Elevation

Click on image to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.


Click on images to see a closer view.

Click on images to see a closer view.
KEYNOTES

1 - Casework - cabinet contractor to provide shop drawings for owners approval; 2 - Gas direct vent fireplace; 3 - Counter top sink; 4 - Under-counter wine cooler; 5 - Cultured stone thin stone veneer installed over thinset o/ water resistant gyp. bd.; 6 - 1 1/2" thick granite hearth top - owner to select finish - contractor to provide and install; 7 - Stained hardwood mantel - owner to select color, finish, and style - contractor to provide and install; 8 - Smooth texture drywall finish; 9 - Stainless steel refrigerator; 10 - Fiberglas bathtub; 11 - Wall-mounted mirror - owner to select finish and contractor to provide and install; 12 - Field tile installed o/ thinset o/ waterproof gyp. bd. - owner to select color, finish, and style - contractor to provide and install; 13 - Border tile installed o/thinset o/waterproof gyp. bd. - owner to select color, finish, and style - contractor to provide and install; 14 - Guardrail - similar to detail; 15 - Door - see pdf file


Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.
Click here to download and view PDF file for Interior Elevation Two

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.
Click here to download and view PDF file for Interior Elevation Three

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.

Click on images to see a closer view.
KEYNOTES (continued)

16 - Front loaded washing machine; 17 - Front loaded dryer; 18 - Utility sink; 19 - Stone countertop supported w/ wood corbels; 20 - Glass shower enclosure; 21 - Window - see exterior elevation drawings and pdf of window types; 22 - Media niche w/glass shelves; 23 - Stacked washer/dryer; 24 - Painted wood shelf and pole; 25 - Brick veneer arch ("cultured stone" - "used brick - antique red"); 26 - Stainless steel backsplash; 27 - "Pot filler" fixture; 28 - Oven / cooktop; 29 - Built-in microwave / oven combo; 30 - Lavatory; 31 - Stainless steel dishwasher; 32 - Stainless steel exhaust hood

Click on images to see a closer view.
